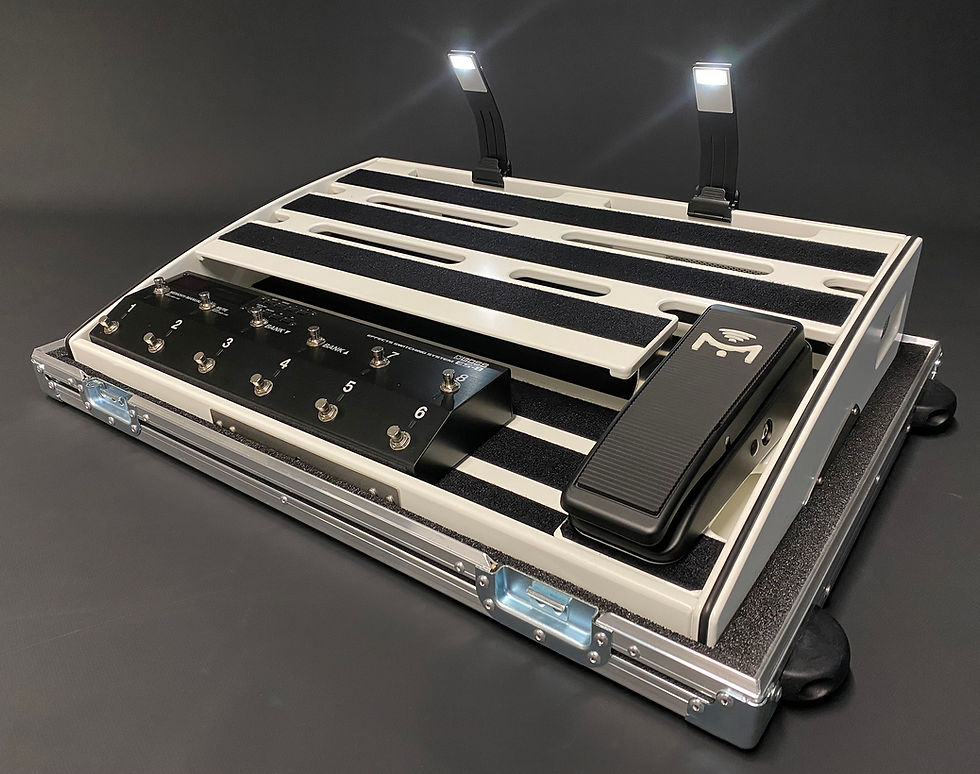

Introducing the SA675XDM_w a true multi-tasking pedalboard.
Available in Standard, G3/Expression, and Atom/Expression/Wah formats (switchers of similar sizes ie. ES8, PBC will also of course fit).
The top deck is profiled to take one Wah/Volume/Expression pedal up to the size of the Lehle mono/stereo Volume pedal.
675 denotes the deck width in mm (26.5”) and it has the Xtra Deep size of 460mm (18.1”). This means space for two rows of pedals on top and inside with your switcher combination at the front all in a deceptively small footprint.
• 675 mm wide hybrid "flat top" / two level pedalboard.
• the top deck is 105mm deeper than our standard decks and therefore has space for two rows of pedals. It can be profiled to allow space for a Wah / Volume or Expression pedal to be fitted on the lower deck. It is mounted on locking hinges, so it remains in the vertical position when opened and has ball latches underneath to lock it in the closed position when down.
• the front area is prepared for you to install a switching system and Wah / Volume or Expression pedal.
• the angle of the upper deck is ergonomically designed for foot switching comfort
• the inner area also has space for power supplies and pedals
• top deck and the inside floor are finished with high quality Velcro
• the side panels are finished with rubber to grip the stage and also to act as protection and Lid location
• Supplied with 2 x IEC power socket (male outside/female inside)
• Supplied with 4 x Connector Box "holes" which can be fitted with Connector Boxes or plates to take a PATCH BAY or alternative sockets ie. XLR / MiDi / USB etc.
• Supplied with 2 x flexible rechargeable LED lights, deck and pedal Velcro
• there is an optional 6 channel STEREO Connection Box for GUITAR IN - AMP OUT - EFFECTS LOOP IN / OUT and FOOTSWITCHES (see OPTIONS page for more details)
• optional Socket Plates to take alternative sockets ie. XLR / MiDi / USB etc. (see INPUTS/OUTPUTS page for more details).
• optional Patch Bays an be fitted to the back panel, these enable simple cabling up using shorter more manageable cables from the inside to the top deck.
• stock colour and FOC is Black but if you want something special then please choose a RAL colour from the chart on this product page or a Wood Stain from the COLOUR page, price for custom colours and stains is €135, you'll find many examples on the COLOUR page.
*all prices are +Tax @19% (in EU countries) and shipping costs.
** DON'T WANT TO USE THE SHOP? THEN JUST DROP US A LINE USING THE CONTACT PAGE AND WE'LL BE HAPPY TO GET BACK TO YOU.
• Outside - W 705 x D 485 x H 145 mm (27.75 x 19.05 x 5.70 inches)
• Upper deck - W 671 x D 310 mm (26.42 x 12.20 inches)
• Height under top deck inside - rear 80, front 60 mm (rear 3.15, front 2.36 inches)
• Weight board only - 8 kg (17,6 lbs)
Follow the links below to order other components for your board.
• Weight board and Lid - 10,5 kg (23 lbs)
Connector Box, Socket Plate, Patchbay etc.
