This page is designed as a quick visual guide to show you how many standard pedals will fit onto each size of pedalboard and the complete range of "standard" deck configurations that we offer (some may not yet be listed in the website shop,

for these please contact us directly or add the variation to the NOTES box when ordering).

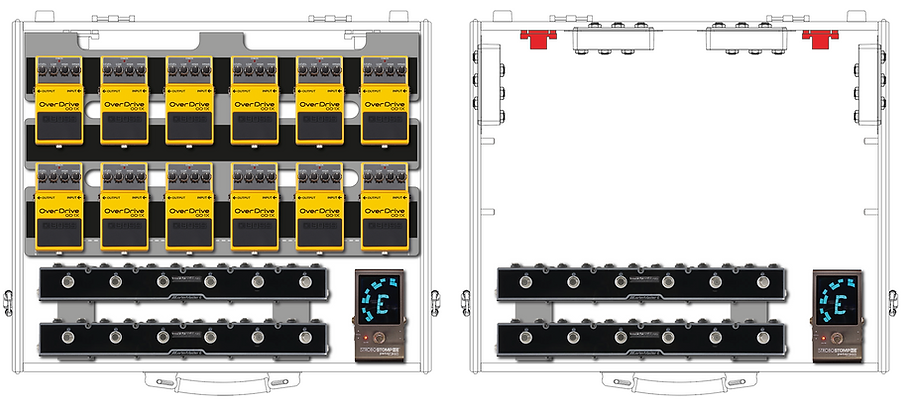

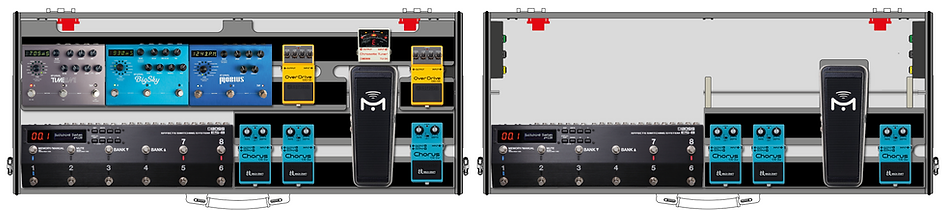

The left view is the plan view from above showing the bottom and top decks. The right view has the top deck removed to show

the space available inside for power supplies and other pedals.



The Boss / Strymon / Mission / Xotic and TC pedals we are using as our "datum" as we're sure that these are a familiar size for everyone.



The red symbol shows the IEC power supply socket location(s) and the grey box the possible Connector Box / Socket Plate /

Patch Bay position(s).

SA250 standard decks


SA250 Plus 30 top deck (use this deck to increase the space on the top deck for more pedals if the size of your pedals on the bottom deck allows).

SA250 QMX bottom deck (not just for the QMX2, ask us if you want us to check the size of an alternative mini-switcher).


SA250 no bottom deck perfect for an RJM or Morningstar, or similar).


SA250 XW1 top deck (not just for the XW1, ask us if you want us to check the size of an alternative mini-wah, expression, volume pedal).


SA250 Exp/Wah/Volume (use as an extension board with no top deck, typically used in conjunction with the SA525).


SA350 standard decks


SA350 Plus 30 top deck (use this deck to increase the space on the top deck for more pedals if the size of your pedals on the bottom deck allows).


SA350 - QMX4 wedges (how about mounting 2 x QM4 (or other switchers) onto our new wedge supports, giving comfortable switching of all of your pedals, on top and inside).


SA350 no bottom deck (space for an ES5 / MS3 etc.).


SA450 standard decks


SA450w Wah / Volume / Expression deck


SA450  "Hollis" top deck / QMX6 bottom deck


SA450 - Plus30 top deck (30mm deeper to fill the gap between the G2/ G3 / ES8 / PBC and the top deck creating more pedal space).


SA450 - MS3 / FV30


SA450w - MS3


SA550XDM (our deeper format purpose built switcher board, enough space at the front for most switcher systems).


SA550XDM (our deeper format purpose-built switcher board. If you are not into programming then how about two QMX6 switchers (or equivalent) mounted onto our "wedge" system, for ergonomic switching comfort.


SA550XDM w


SA550XDM wx


SA600 standard decks


SA600w - Wah / Volume / Expression deck


SA600 Switcher (Bottom Deck modified for G2 / G3 / ES8 / PBC)


SA600 Switcher - Xotic XW1 (Bottom Deck modified for G2 / G3 / ES8 / PBC)


SA750w - Wah / Volume / Expression deck


SA600w Switcher (Bottom Deck modified for G2 / G3 / ES8 / PBC)


SA675XDM Switcher


SA675XDM w Switcher


SA675XDM wx Switcher


SA750 standard decks


SA750wx - Wah / Volume / Expression deck


SA750 Switcher (Bottom Deck modified for G2 / G3 / ES8 / PBC)


SA750w Switcher (Bottom Deck modified for G2 / G3 / ES8 / PBC)


SA750wx Switcher (Bottom Deck modified for G2 / G3 / ES8 / PBC)


SA750XDM Switcher


SA750XDM w Switcher


SA750XDM wx Switcher


SA900 standard decks


SA900w - Wah / Volume / Expression deck


SA900wx - Wah / Volume / Expression deck


SA900 Switcher (Bottom Deck modified for G2 / ES8 / PBC)


SA900w Switcher (Bottom Deck modified for G2 / ES8 / PBC)


SA900wx Switcher (Bottom Deck modified for G2 / ES8 / PBC)
