The SA525XDM just got bigger and is now the SA550XDM. It maintains all of the features of this series, left, right and rear Connector Box holes and the deeper top deck allowing for two rows of pedals upstairs and plenty of room for power and more pedals inside.
Available in Standard G3, Wah and Atom/Expression/Wah formats (switchers of similar sizes ie. ES8, PBC will also fit).

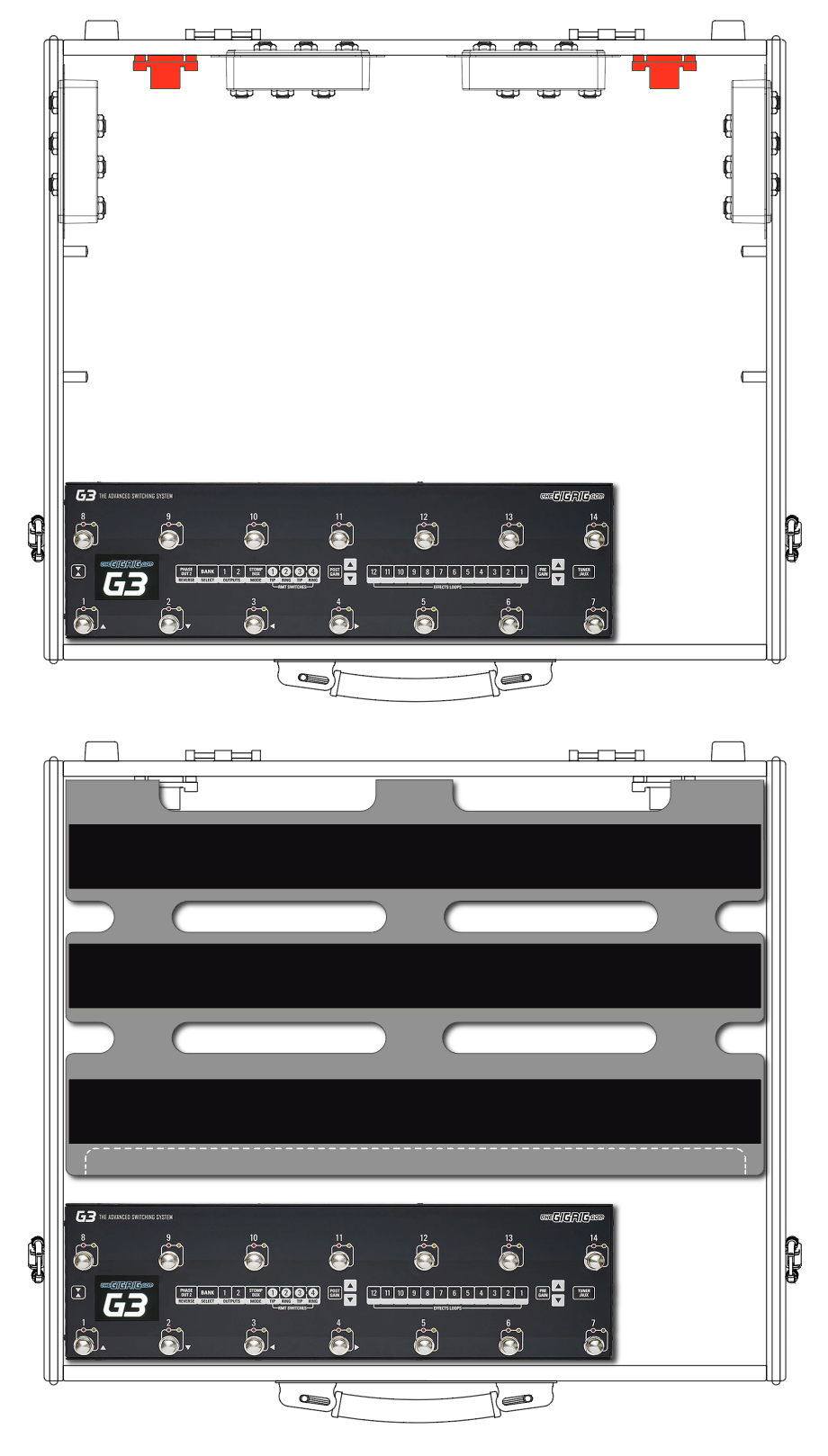

550 is the deck width in mm (21.7”) and it has the Xtra Deep size of 460mm (18.1”). This means space for two rows of pedals on top and inside with your switcher at the front all in a deceptively small footprint.
• 550 mm wide hybrid "flat top" / two level pedalboard.
• the top deck is 105mm deeper than our standard decks and therefore has space for two rows of pedals. It is mounted on locking hinges, so it remains in the vertical position when opened and has ball latches underneath to lock it in the closed position when down.
• the inner area has space for power supplies and pedals
• the top deck and the base are fitted with high quality Velcro
• the side panels are finished with rubber to grip the stage and also to act as protection and Lid location
• 2 x IEC power socket (male outside/female inside)
• 4 x Connector Box "holes" which can be fitted with Connector Boxes or plates to take a PATCH BAY or alternative sockets ie. XLR / MiDi / USB etc.
• 2 x flexible rechargeable LED light, deck and pedal Velcro
• there is an optional 6 channel STEREO Connection Box for GUITAR IN - AMP OUT - EFFECTS LOOP IN / OUT and FOOTSWITCHES (see OPTIONS page for more details)
• optional Socket Plates to take alternative sockets ie. XLR / MiDi / USB etc. (see INPUTS/OUTPUTS page for more details).
• optional Patch Bays can be fitted into the back panel, these enable simple cabling up using shorter more manageable cables from the inside to the top deck.
• stock colour and FOC is Black but if you want something special then please choose a RAL colour from the chart on this product page or a Wood Stain from the COLOUR page, price for custom colours and stains is €135, you'll find many examples on the COLOUR page.
*all prices are +Tax @19% (in EU countries) and shipping costs.
** DON'T WANT TO USE THE SHOP? THEN JUST DROP US A LINE USING THE CONTACT PAGE AND WE'LL BE HAPPY TO GET BACK TO YOU.
• Outside - W 580 x D 485 x H 145 mm (22.8 x 19.05 x 5.70 inches)
• Upper deck - W 546 x D 310 mm (21.5 x 12.20 inches)
• Height under top deck inside - rear 80, front 60 mm (rear 3.15, front 2.36 inches)
• Weight board only - 6,3 kg (13.9 lbs)
• Weight board and Lid - 8.7 kg (19.2 lbs)
Follow the links below to order other components for your board.
Connector Box, Socket Plate, Patchbay etc.
