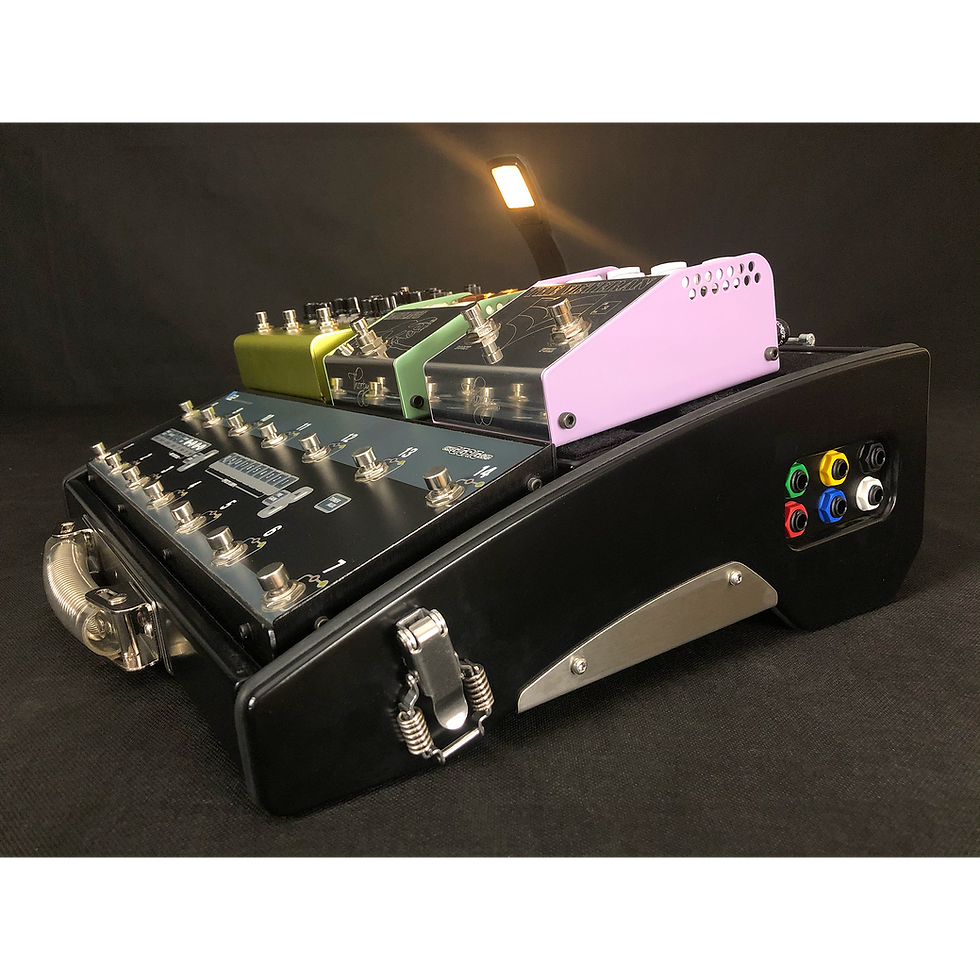

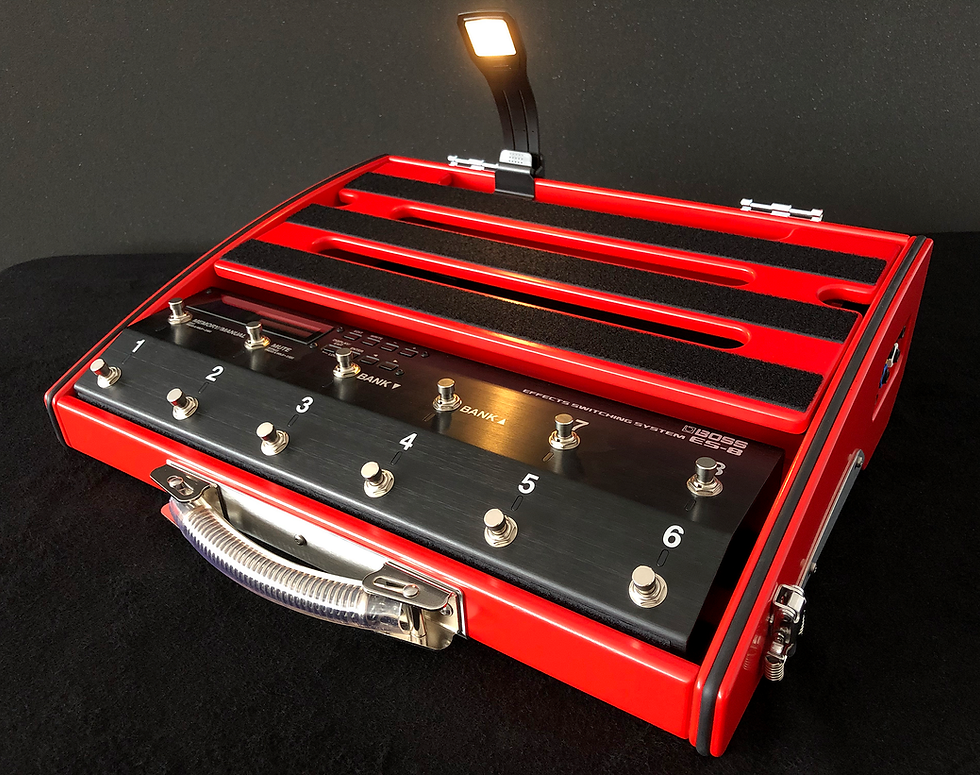

SA450_ES8/G2/G3/PBC
• 450 mm wide two level pedalboard
• the upper deck is mounted on locking hinges, so it remains in the vertical position when opened and has ball latches underneath to lock it in the closed position when down
• the angle of the upper deck is ergonomically designed for foot switching comfort
• the inner area also has space for power supplies and pedals
• the standard bottom deck is removed for you to install a Switching system.
• top deck and the inside floor is finished with high quality Velcro
• the side panels are finished with rubber to grip the stage and also to act as protection and Lid location
• IEC power socket (male outside/female inside)
• Supplied with 2 x Connector Box "holes" (left and right) which can be fitted with Connector Boxes, Patch Bay or Socket Plates for alternative sockets ie. XLR / MiDi / USB etc.
• Supplied with USB re-chargeable flexible LED light and pedal Velcro
Important notes:
• the decks are at any time replaceable, so if your board has no Wah, Volume or Expression pedal cut-out then it's no problem in the future for us to supply you with a replacement deck that you can fit yourself to suit a new configuration
• the same goes for the Wah / Volume / Expression pedal extension on the lower deck, this is also movable and replaceable
• there is an optional 6 channel STEREO Connection Box for GUITAR IN - AMP OUT - EFFECTS LOOP IN / OUT and FOOTSWITCHES (see OPTIONS page for more details)
• stock colour and FOC is Black but if you want something special then please choose a RAL colour from the chart on this product page or a Wood Stain from the COLOUR page, price for custom colours and stains is €135, you'll find many examples on the COLOUR page.
*all prices are +Tax @19% (in EU countries) and shipping costs.
** DON'T WANT TO USE THE SHOP? THEN JUST DROP US A LINE USING THE CONTACT PAGE AND WE'LL BE HAPPY TO GET BACK TO YOU.
Specs
• Outside - W 480 x D 375 x H 138 mm (18.9 x 14.76 x 5.43 inches)
• Lower deck - W 450 x D 165 mm (17.7 x 6.5 inches)
• Upper deck - W 446 x D 185 mm (17.56 x 7.28 inches)
• Inside - W 450 x D 144 mm (17.72 x 5.67 inches)
• Height inside - rear 80, front 65 mm (3.15 x 2.55 inches)
• Gap between upper and base - 64 mm (2.5 inches)
• Weight - 4,7 kg. (10.36 lbs)
